FEATURES
-

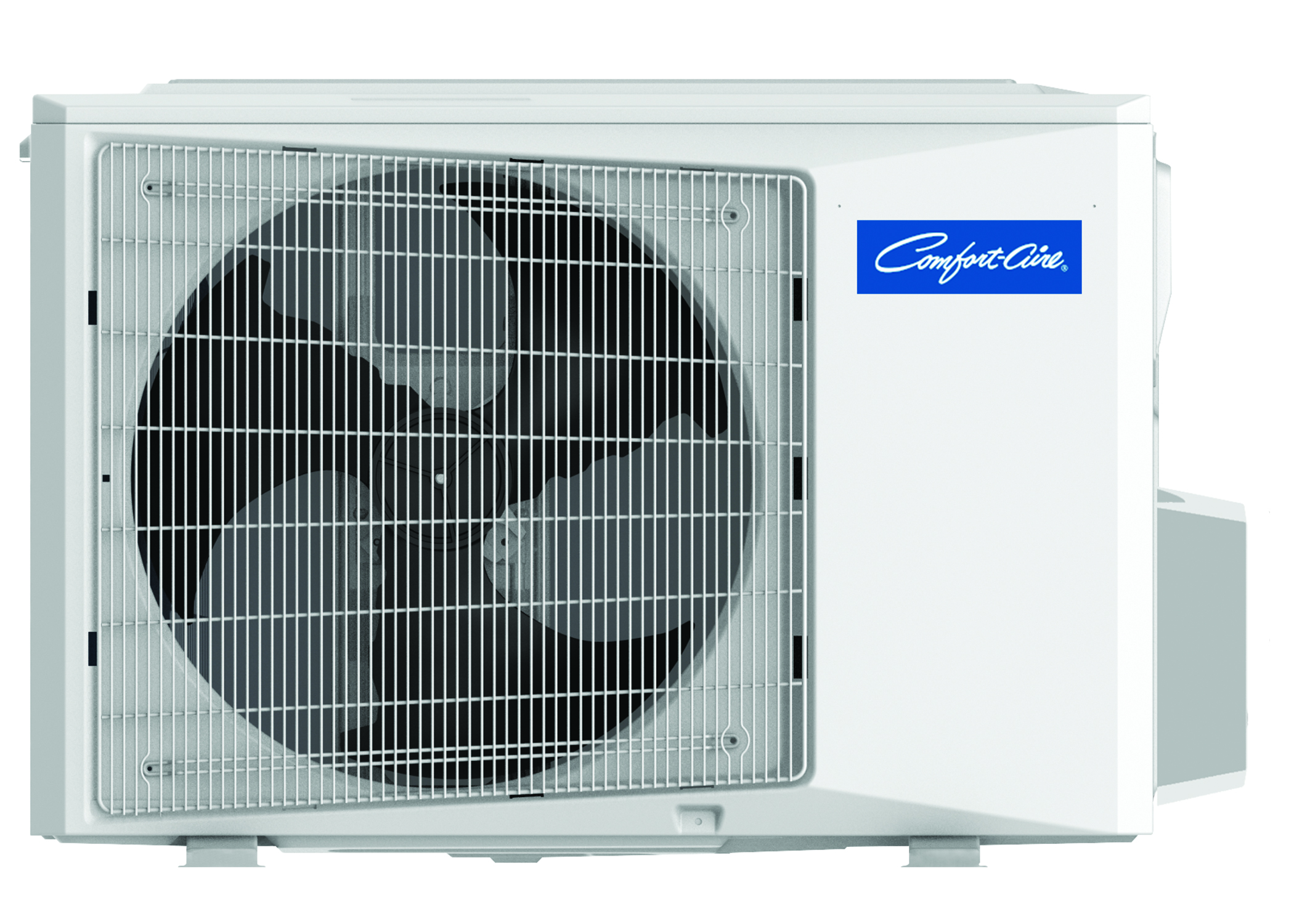

Horizontal discharge condenser is compact in size with an alternative footprint to fit in tight spaces without detracting from landscaping and outdoor living areas. This also makes it great for apartment complexes and condominiums.
-
All models can achieve minimum 14 SEER with the applicable matching coil or BCW1 combination
-
Less expensive than traditional top-discharge condensing units
-
Compact design coupled with standard wall brackets allow for multiple condensing units in the same footprint – ideal for light-commercial applications
-

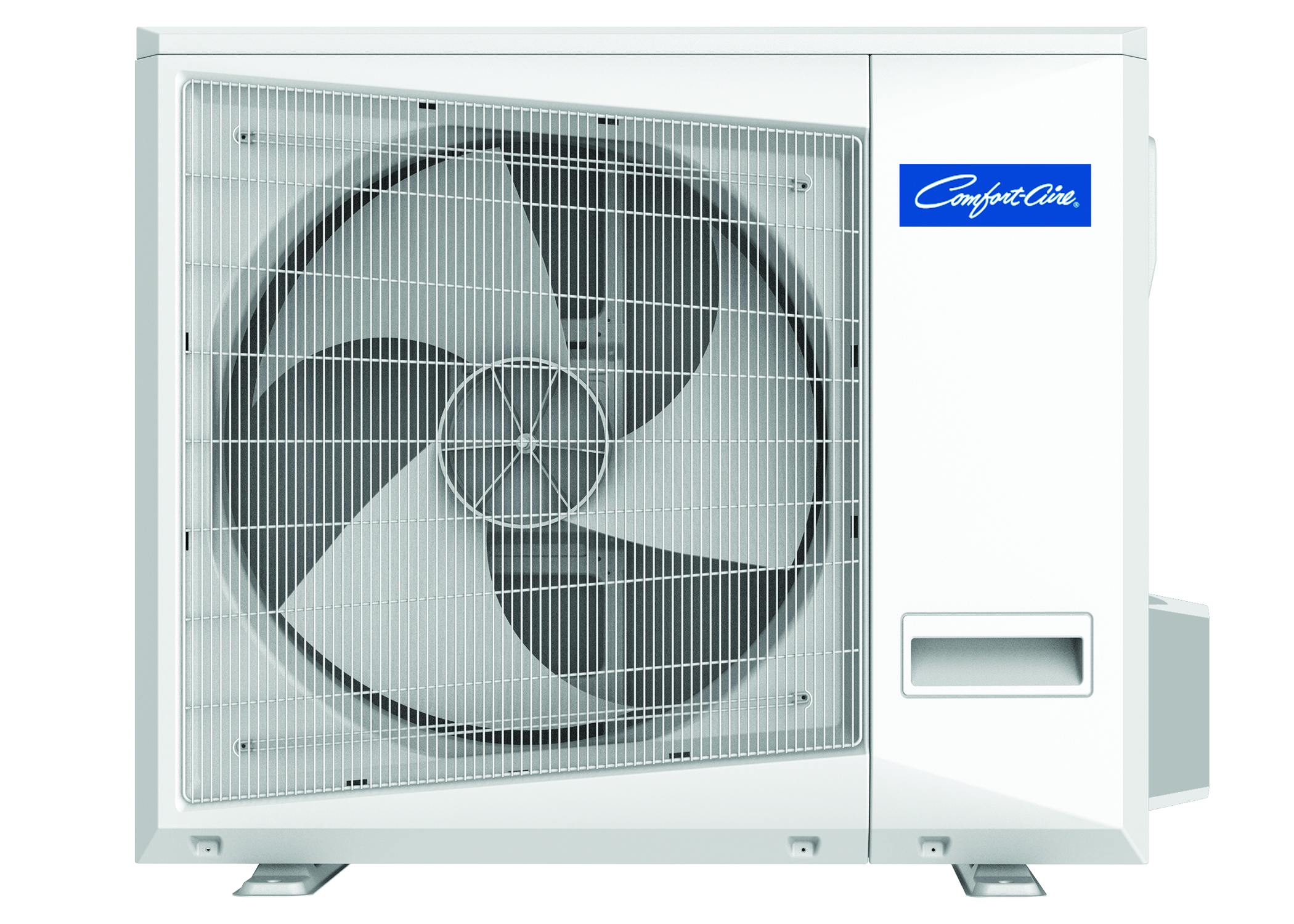

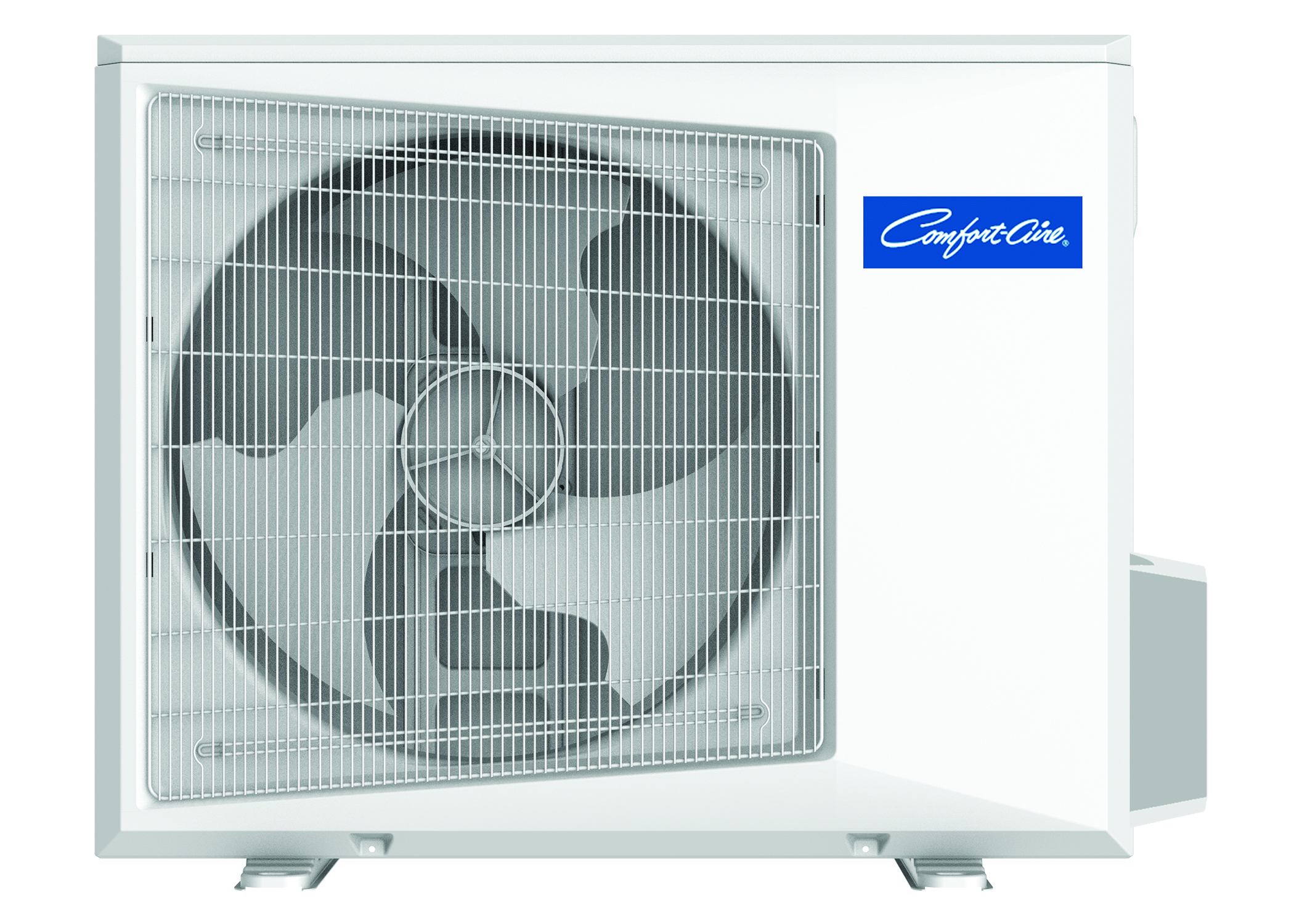

12,000 through 36,000 BTU units designed with time tested rotary compressor
-

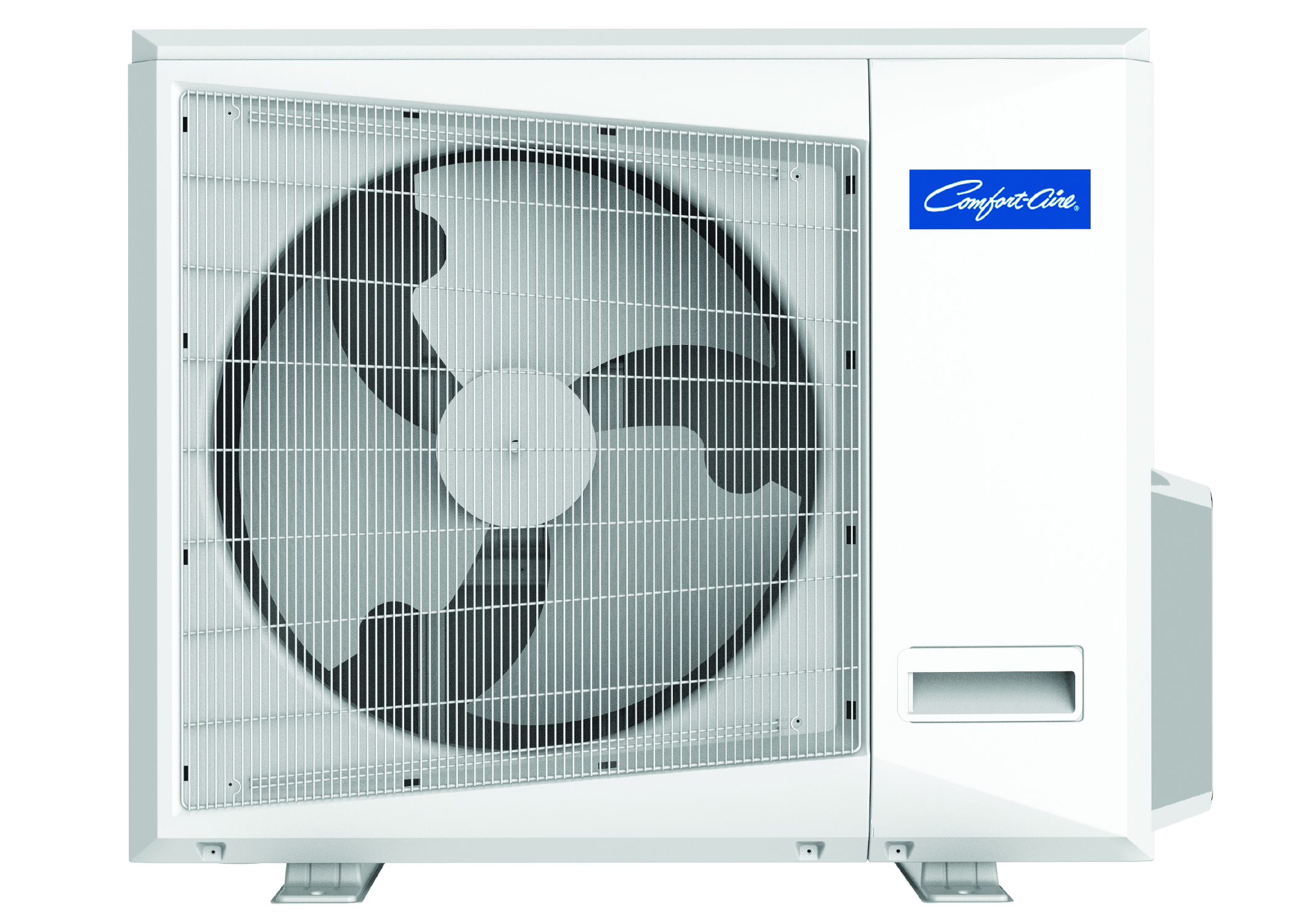

48,000 features durable scroll compressor for long lasting trouble free operation
-
Ultra quiet operation-rated as low as 54 decibels
-
Attractive cabinet is galvanized steel with powder coated finish for durability, in attractive neutral color
-
Low voltage 24V control system for universal use
-
Bio-engineered fan blade designed for efficient, quiet operation
-
R410A refrigerant
Where TXV's are used, a 15% bleed-type is required. Use of Non-bleed TXV's will void warranty.
Bleed-Style TXV’s for use with CMA14-SERIES and Comfort-Aire Coil/Air Handlers:
• 67304001 TXV for use with CMA14 1.0T – 3.0T
• (C,M)CG*P Coils
• HMG/HCG Air Handlers
